Our fleet
Aeroclub Maritime flies from Lelystad Airport with two Aquila A210 training aircraft. Select an aircraft below for the relevant onboard documentation, checklists and photo gallery.
Aquila A210
PH-DHA
Onboard documentation, cockpit references and photo gallery for PH-DHA, including Garmin G500-related documentation.
View aircraft
Aquila A210

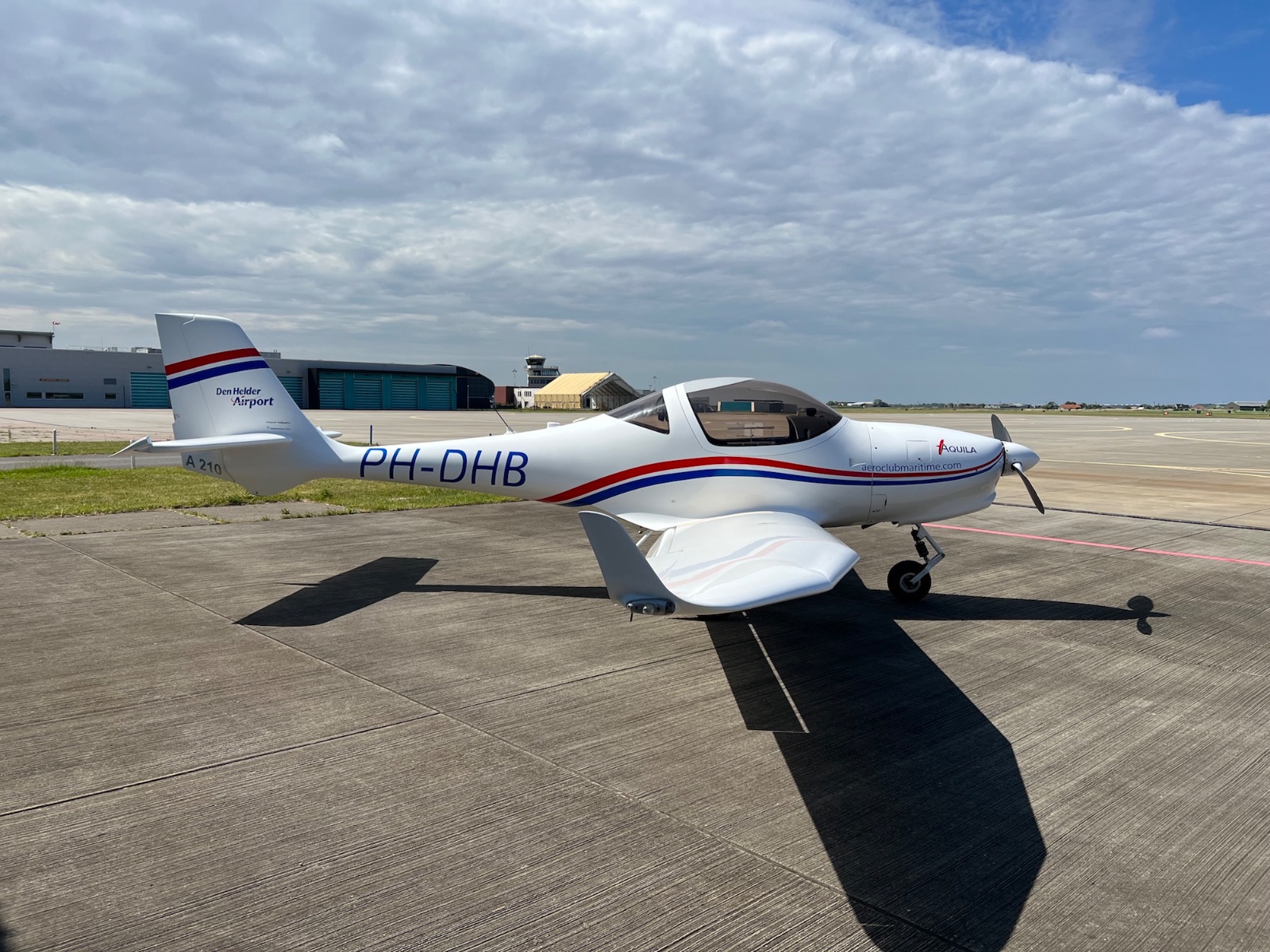

PH-DHB
Onboard documentation, cockpit references and photo gallery for PH-DHB, including Aspen and MAX MFD documentation.
View aircraftGeneral fleet documents
Aquila A210 specifications
The Aquila A210 is a single-engine low-wing aircraft. It seats two people and has a baggage compartment for up to 40 kg. The aircraft is powered by a Rotax 912S atmospheric, air- and water-cooled, horizontally opposed four-stroke four-cylinder engine producing 98.6 hp.
The A210 is built entirely from carbon and glass-fibre reinforced plastic. It is equipped with a 70 amp / 28 volt alternator, dual ignition, a vacuum pump, a fuel pump and a 1.66 m diameter hydraulically variable-pitch two-blade MT-Propeller (MTV-21-A/175-05).
The aircraft preferably uses Mobility Gasoline (MOGAS), but can also fly on Aviation Gasoline 100LL (AVGAS 100LL). It carries 2 x 55 litres of fuel, giving a maximum range of 1300 km or 700 nm.
General characteristics
- Capacity
- 2 occupants
- Length
- 7.30 m (23 ft 11 in)
- Wingspan
- 10.30 m (33 ft 10 in), excluding winglets
- Height
- 2.30 m (7 ft 7 in)
- Wing area
- 10.50 m2 (113.0 sq ft)
- Airfoil
- Modified Horstmann-Quast HQ-42
- Empty weight
- 500 kg (1102 lb)
- Maximum take-off weight
- 750 kg (1653 lb)
- Engine
- 1 x Rotax 912 S3 flat-four air- and water-cooled piston engine, 73.5 kW (98.6 hp)
- Propeller
- 2-blade MT-Propeller MTV-21-A/175-05 hydraulically variable pitch, 1.66 m (5 ft 5 in) diameter
Performance
- Maximum speed
- 130 kt (241 km/h, 150 mph)
- Cruise speed
- 103 kt (191 km/h, 119 mph) at 55% power
- Stall speed
- 43 kt (80 km/h, 50 mph) flaps down
- Never exceed speed
- 165 kt (306 km/h, 190 mph)
- Range
- 620 nm (1148 km, 713 mi) at 55% power at 5000 ft (1640 m) with 45 min reserves
- Endurance
- 6 hours 5 minutes at 55% power
- Ceiling
- 14,501 ft (4,420 m)
- Rate of climb
- 752 ft/min (3.82 m/s)
